Question 150Steam Plants - 1st Asst/Chief

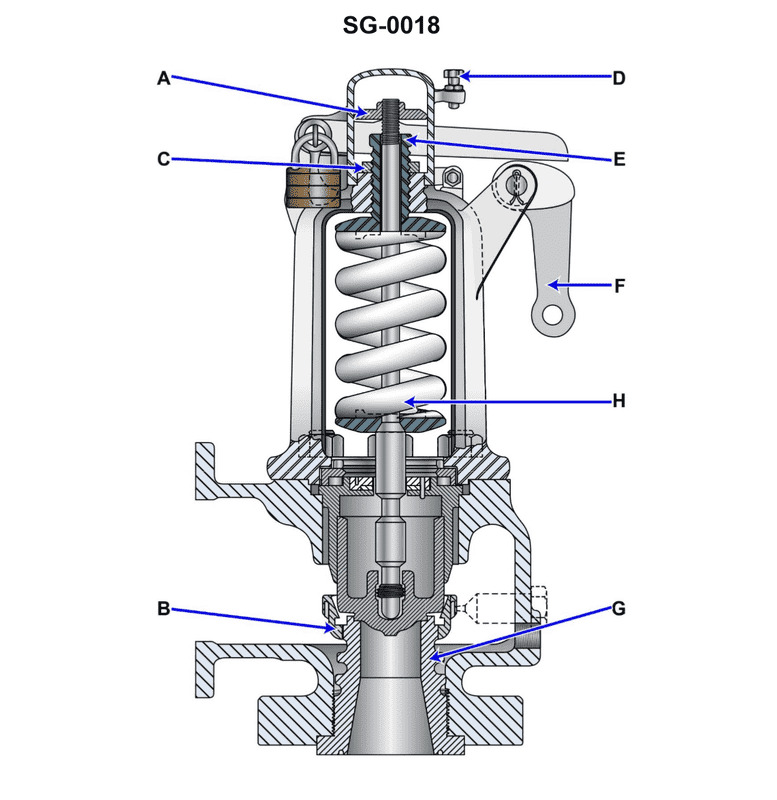

70% to passWhich of the listed types of safety valves is shown in the illustration? Illustration SG-0018
AHuddling chamber type
BPressure-loaded type
CJet flow type
DNozzle reaction type
AI Explanation
The correct answer is A) Huddling chamber type. The huddling chamber type of safety valve is shown in the illustration SG-0018. This type of valve uses a huddling chamber around the valve seat to create a pressure differential that helps the valve open quickly and fully when the set pressure is reached. This design is commonly used in marine and industrial applications to provide reliable overpressure protection. The other answer choices, such as pressure-loaded, jet flow, and nozzle reaction types, are different safety valve designs that have distinct operating principles and are not depicted in the given illustration.
