Question 4Steam Plants - 1st Asst/Chief

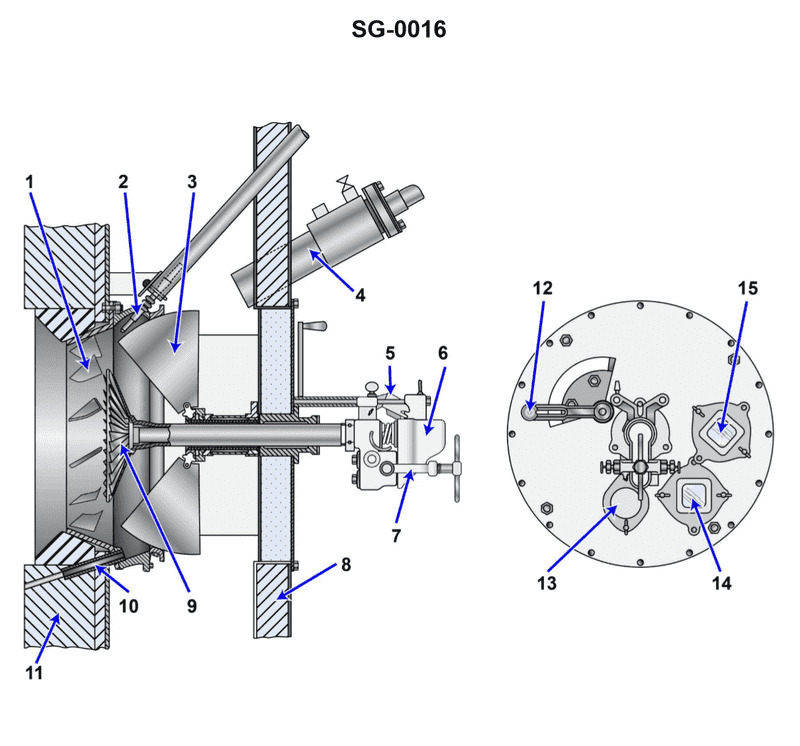

70% to passAccording to the illustration, what part number identifies the "diffuser"? Illustration SG-0016
A1
B3
C9
D7
AI Explanation
The correct answer is C) 9. Based on the illustration SG-0016, the part number "9" identifies the "diffuser" component. This can be determined by directly referencing the labeled parts in the illustration, where part number 9 is specifically indicated as the "diffuser". The other answer choices are incorrect because they do not match the part number assigned to the diffuser in the provided illustration. Part numbers 1, 3, and 7 identify other components, but not the diffuser.
