Question 153Deck General70% to pass

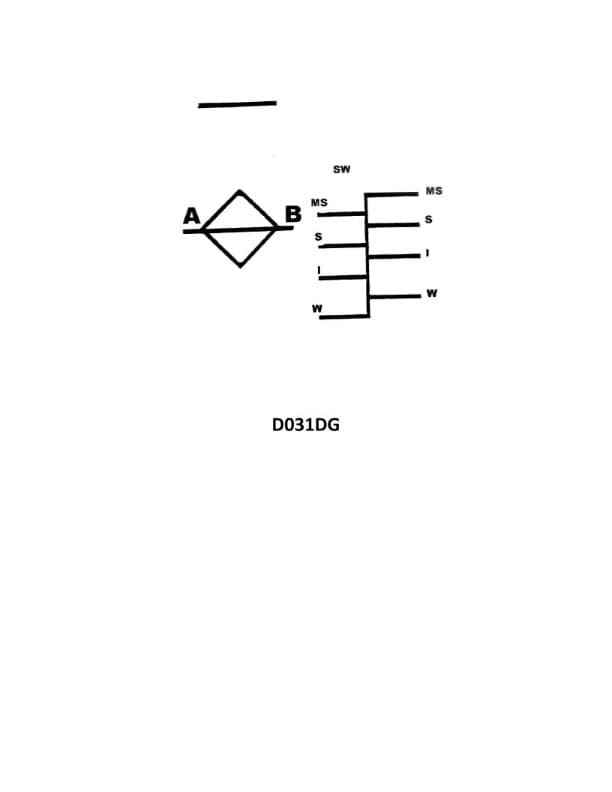

In illustration D031DG below, what does the single line located directly above the diamond indicate?
AI Explanation
The correct answer is B) deck line.
The single line located directly above the diamond symbol in illustration D031DG indicates the deck line, which represents the level of the main deck of the vessel. This is a standard feature of ship diagrams and is used to provide visual reference for the vessel's dimensions and features.
The other answer choices are incorrect because: A) the freeboard line refers to the distance between the waterline and the main deck, C) the waterline indicates the level of the water the vessel is floating in, and D) the load line refers to the maximum safe draft of the vessel, which is not shown in this particular illustration.
