Question 305Electricity/Electronics - Assistant Engineer70% to pass

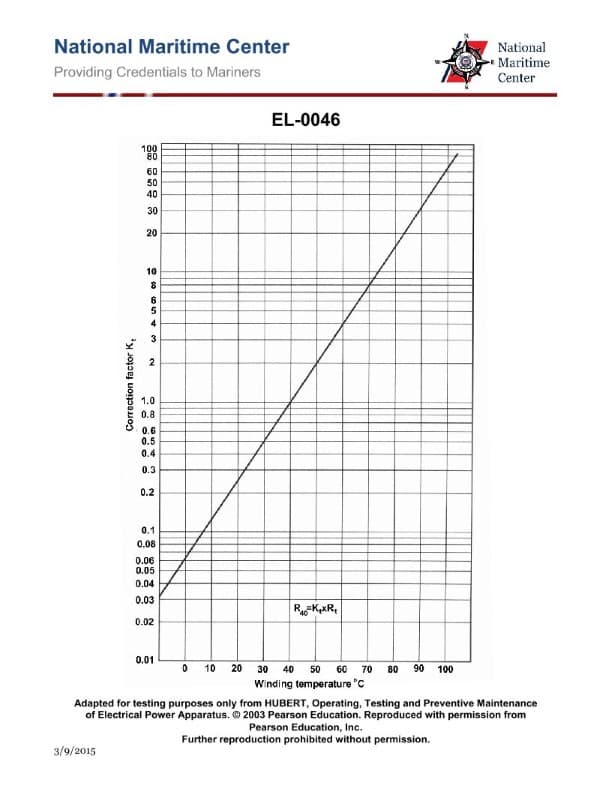

Using the temperature correction factor for the winding insulation temperature graph shown in the illustration, what would be the correction factor and the corrected temperature to 40 degrees C for a motor with an insulation resistance of 4 megohms measured at 50 degrees C? Illustration EL-0046
AI Explanation
The correct answer is D) The temperature correction factor is 2 and the corrected resistance is 8 megohms at 40 degrees C.
The reasoning is as follows:
1. Using the temperature correction factor graph for winding insulation resistance, a temperature change from 50 degrees C to 40 degrees C has a correction factor of approximately 2.
2. Since the insulation resistance is 4 megohms at 50 degrees C, applying the correction factor of 2 results in a corrected resistance of 8 megohms at 40 degrees C.
The other options are incorrect because they do not accurately apply the temperature correction factor or calculate the corrected resistance based on the given information.
