Question 361Electricity/Electronics - Assistant Engineer70% to pass

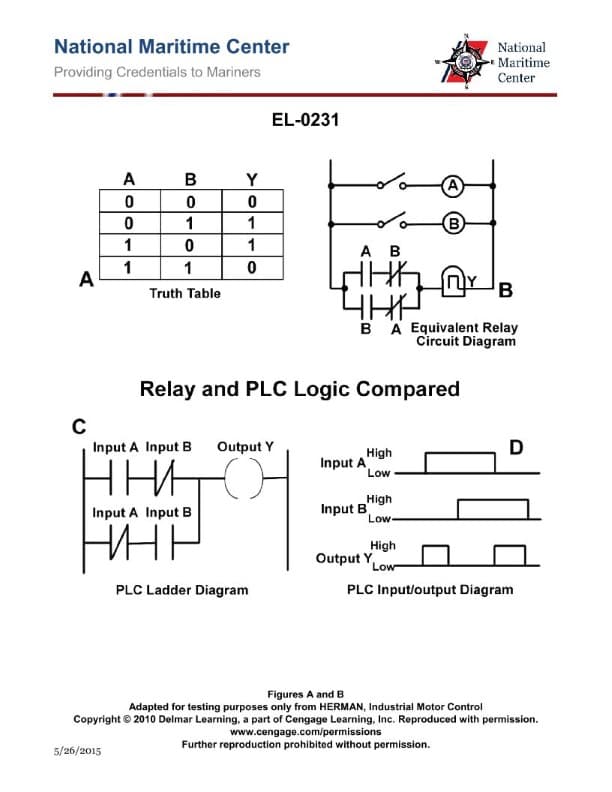

As shown in all four diagrams included in the illustration, what type of logic circuit is represented? Illustration EL-0231
AI Explanation
The correct answer is D) XOR gate.
The four diagrams in the illustration EL-0231 represent an XOR (exclusive OR) logic gate, which produces a HIGH (1) output when either, but not both, of the two inputs are HIGH (1). This logic operation is a fundamental component in various electronic circuits and digital systems.
The other answer choices are incorrect because:
A) A NOT gate produces the inverse of a single input, whereas the XOR gate has two inputs.
B) An OR gate produces a HIGH output when one or both inputs are HIGH, which is different from the XOR gate's behavior.
C) A NOR gate produces a HIGH output when both inputs are LOW, which is also different from the XOR gate's operation.
