Question 557Electricity/Electronics - Assistant Engineer70% to pass

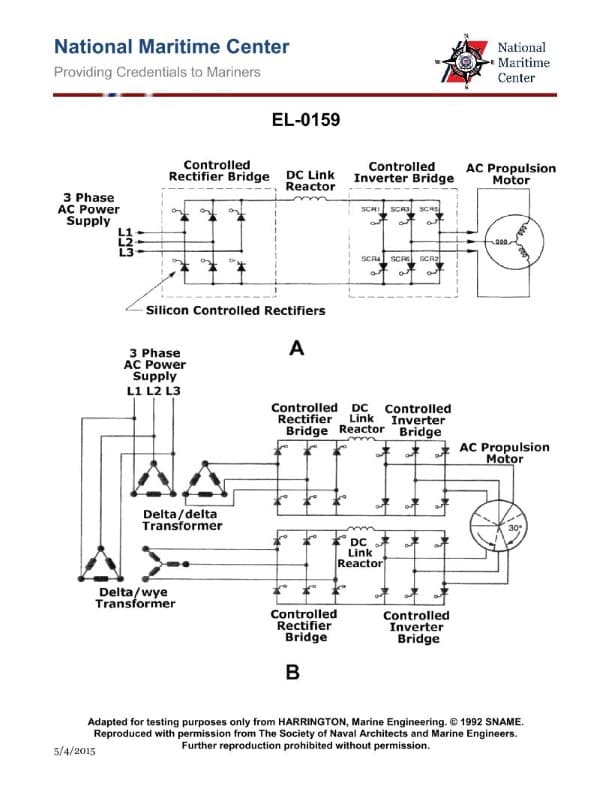

As shown in figure "A" of the illustration, the load-commutated inverter drive illustrated has how many pulses? Illustration EL-0159
AI Explanation
The correct answer is B) 6 pulses.
The load-commutated inverter drive illustrated in Figure "A" has 6 pulses. This is because a load-commutated inverter is a type of power converter that uses six semiconductor switching devices (typically thyristors or IGBTs) to convert AC power to DC power, and the number of pulses corresponds to the number of switching devices.
The other answer choices are incorrect because 3 pulses would be too few, 9 pulses would be too many for a standard 6-pulse inverter, and 12 pulses would typically be associated with a more complex 12-pulse inverter configuration.
