Question 116Electricity/Electronics - 1st Asst/Chief70% to pass

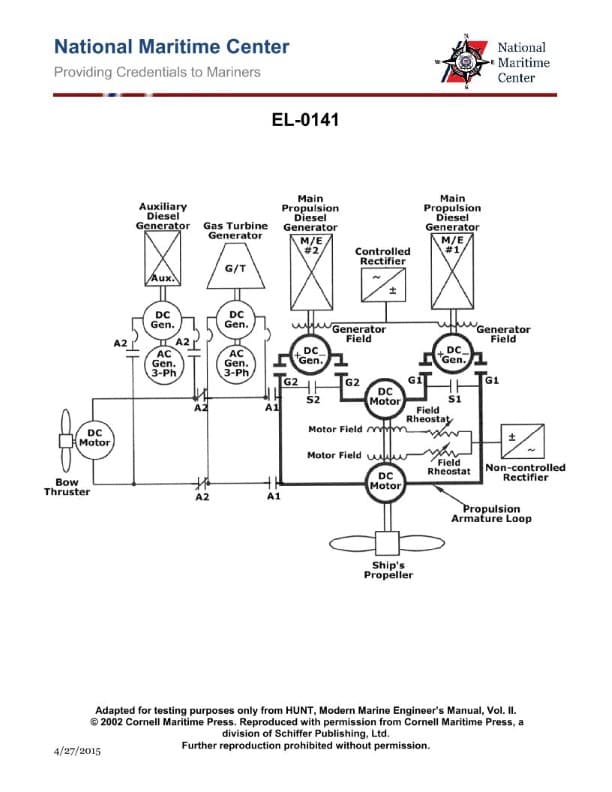

On an older two-generator, two-motor DC diesel-electric drive system as shown in the illustration, what are the characteristics of the main propulsion generators? Illustration EL-0141
AI Explanation
The correct answer is B.
The generators in a two-generator, two-motor DC diesel-electric drive system are direct current (DC) generators. The output voltage of these DC generators is varied by varying the generator field strength, not the rotational speed. Additionally, the output polarity of the DC generators is reversed by reversing the generator field polarity, not the generator armature direction of rotation.
The other options are incorrect because they either describe alternating current (AC) generators instead of DC generators, or they incorrectly state that the output voltage is varied by changing the rotational speed or that the polarity is reversed by changing the armature direction of rotation.
