Question 16Electricity/Electronics - 1st Asst/Chief70% to pass

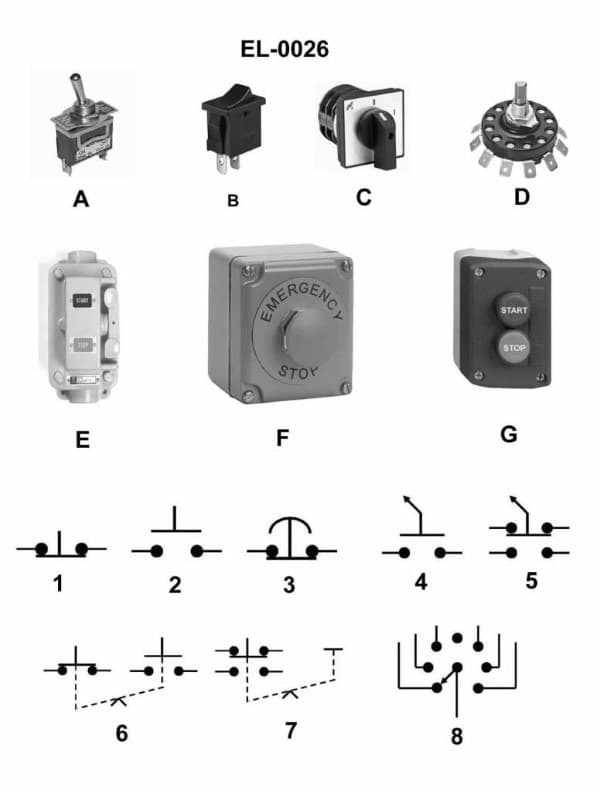

Which of the following statements concerning figure "6" of the illustration is true? Illustration EL-0026
AI Explanation
The correct answer is D) The symbol represents a switch using maintained contact with "either/or" logic.
This is correct because the symbol in figure "6" of the illustration EL-0026 depicts a switch with maintained contact, meaning the switch will remain in the selected position until manually changed. The "either/or" logic refers to the switch having two mutually exclusive positions, where selecting one position automatically deselects the other.
The other options are incorrect because A) the symbol does not represent an analog switch, B) it does not represent an overload relay, and C) it does not represent a computer cable pin plug. The symbol is specifically a maintained contact switch with "either/or" logic, which is the correct interpretation based on the information provided in the illustration.
