Question 30Electricity/Electronics - 1st Asst/Chief70% to pass

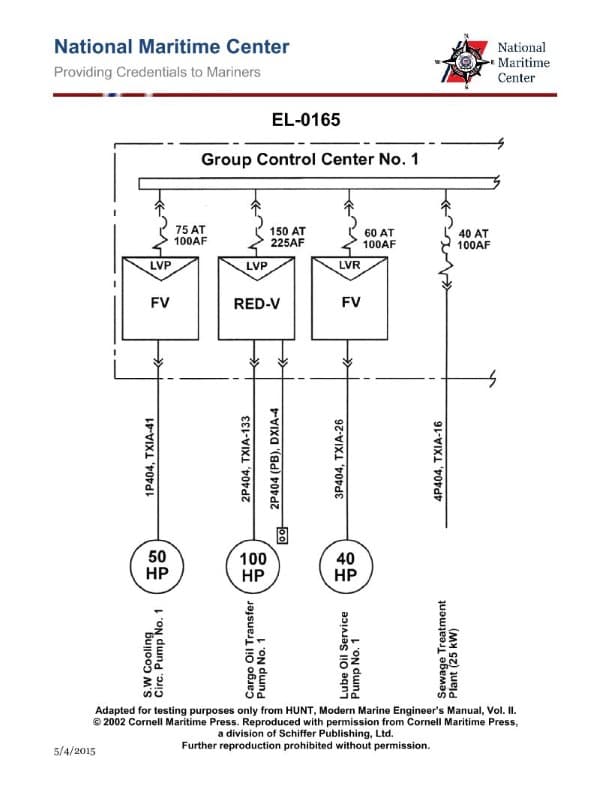

As shown in the illustration, which of the following pieces of equipment is supplied with a circuit breaker providing both overload and short-circuit protection? Illustration EL-0165

AI Explanation
The correct answer is D) Sewage Treatment Plant.
The Sewage Treatment Plant is typically supplied with a circuit breaker that provides both overload and short-circuit protection, as required by electrical safety regulations for this type of critical equipment. This ensures that the sewage treatment system is protected from electrical faults, preventing potential damage or safety hazards.
The other options, such as the Cargo Oil Transfer Pump, Lube Oil Service Pump, and Sea Water Cooling Circulation Pump, may also have circuit breakers, but they are not necessarily required to have both overload and short-circuit protection, as the Sewage Treatment Plant would.
