Question 70Electricity/Electronics - 1st Asst/Chief70% to pass

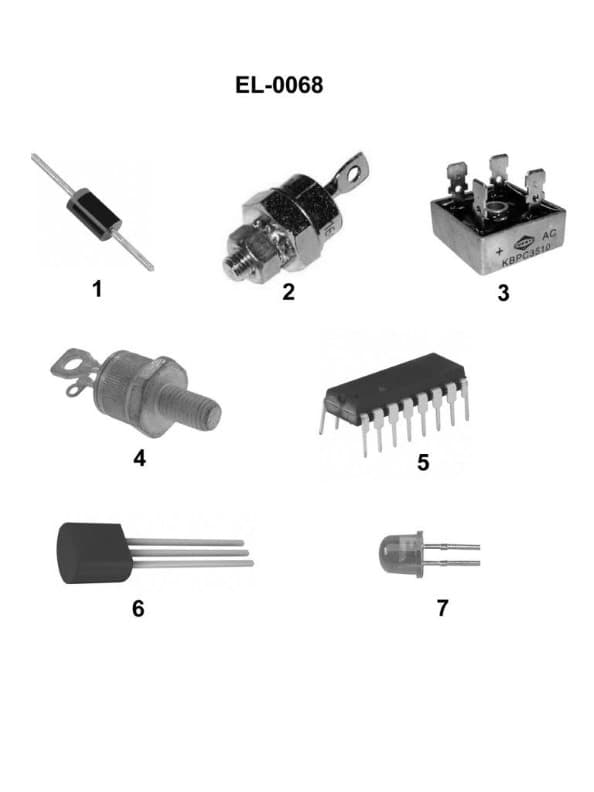

What is the name of the device shown in figure "1" of the illustration? Illustration EL-0068
AI Explanation
The correct answer is A) rectifier diode.
A rectifier diode is a semiconductor device that allows electric current to flow in only one direction, converting alternating current (AC) into direct current (DC). This is the primary function of the device shown in figure "1" of the illustration EL-0068, which is a key component in many electronic circuits and power supplies.
The other options are incorrect because they do not accurately describe the device depicted in the illustration. A light-emitting diode (LED) is a different type of semiconductor device used for illumination, a rectifier bridge is a collection of diodes arranged in a specific configuration, and a silicon-controlled rectifier is a more complex semiconductor device with additional control capabilities.
