Question 289Electricity/Electronics - QMED70% to pass

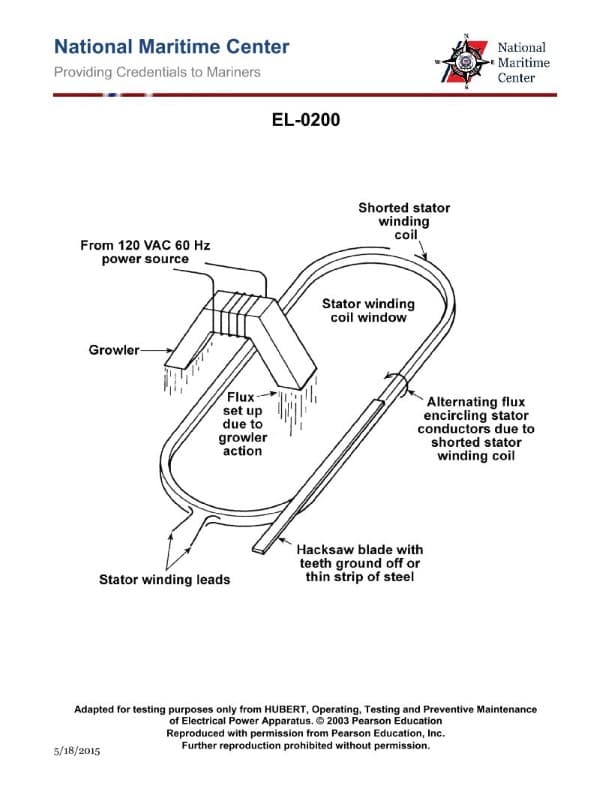

In using a portable growler for the purpose of locating a shorted stator coil in an AC motor as shown in the illustration, what statement is true as the feeler is moved from slot to slot around the stator? Illustration EL-0200
AI Explanation
The correct answer is D.
The feeler will vibrate in synchronism with the 60 Hz AC power source and produce a growling noise when the feeler is moved over a slot containing a shorted coil. This is because a shorted stator coil creates a localized magnetic field that interacts with the alternating current in the feeler, causing it to vibrate and produce a distinctive growling noise.
The other options are incorrect because:
A) The vibration and noise occur when the feeler is over a shorted coil, not a non-shorted coil.
B) An open coil would not produce the same effect as a shorted coil.
C) The feeler does not remain motionless when over a shorted coil, but rather vibrates and produces a growling noise.
Related Questions
#287 When troubleshooting AC motors, what can a portable growler be used to locate? #288 When testing the rotor of a synchronous motor for short circuits, a low voltage source is applied across the rotor coils through the collector rings. What would be the indication of a short-circuited coil? #290 What is an ammeter used to measure? #291 In order to take a current reading with a 'clamp-on' ammeter, what should be the status of the jaws of the instrument? #292 The clamp-on AC ammeter consists essentially of a split-core and a rectifier-type instrument connected to the secondary winding of a particular type of transformer. Which type is used?
