Question 334Electricity/Electronics - QMED70% to pass

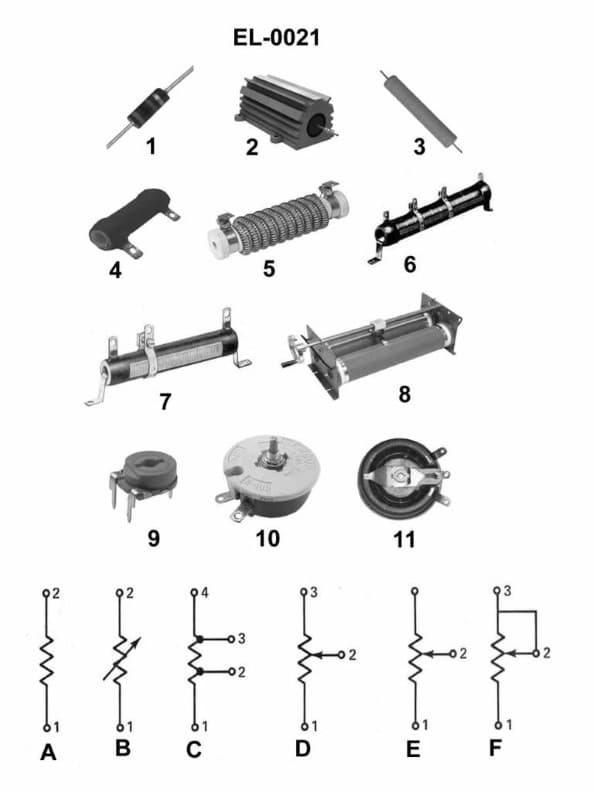

Which of the illustrated resistors represents the schematic symbol shown in figure "C"? Illustration EL-0021
AI Explanation
The correct answer is B) figure "6".
The schematic symbol shown in figure "C" of the illustration EL-0021 represents a fixed resistor, which is accurately depicted by the resistor symbol in figure "6". The other options do not match the schematic symbol in figure "C".
The other answer choices are incorrect because figure "4" represents a potentiometer, figure "7" represents a variable resistor, and figure "10" represents a thermistor, none of which match the fixed resistor symbol shown in figure "C".
