Question 512Electricity/Electronics - QMED70% to pass

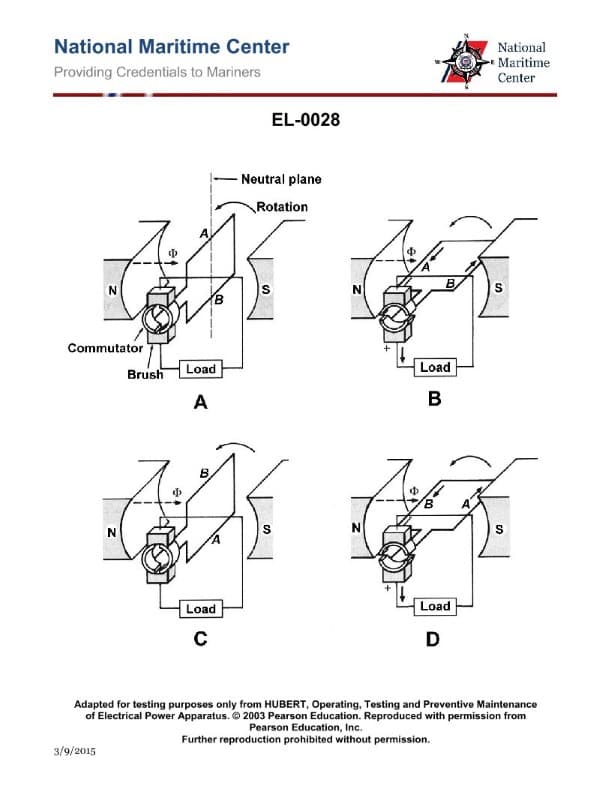

In which figure shown in the illustration will the highest voltage be induced? Illustration EL-0028

AI Explanation
The correct answer is D) both figures "B" and "D".
The reason for this is that figures "B" and "D" depict a changing magnetic field, which will induce the highest voltage according to Faraday's law of electromagnetic induction. In these figures, the magnetic field is changing due to the movement of the conductor, leading to a higher induced voltage compared to the stationary conductor in figures "A" and "C".
The other options are incorrect because figure "A" has a stationary conductor, and figure "C" has a changing magnetic field but no conductor, both of which would result in a lower induced voltage compared to figures "B" and "D".
Related Questions
#510 The amount of voltage induced in the stator windings of a modern AC generator is primarily dependent upon which of the following? #511 How are AC and DC generators similar? #513 As shown in the illustration, which brush holder would be appropriate to use in a bidirectional motor? Illustration EL-0029 #514 By what means is a diesel-driven emergency generator prevented from being paralleled with the ship's service generators? #515 A DC generator which is used to supply direct current in order to provide magnetizing current to an AC generator field is commonly known as what?
