Question 263General Subjects - Assistant Engineer70% to pass

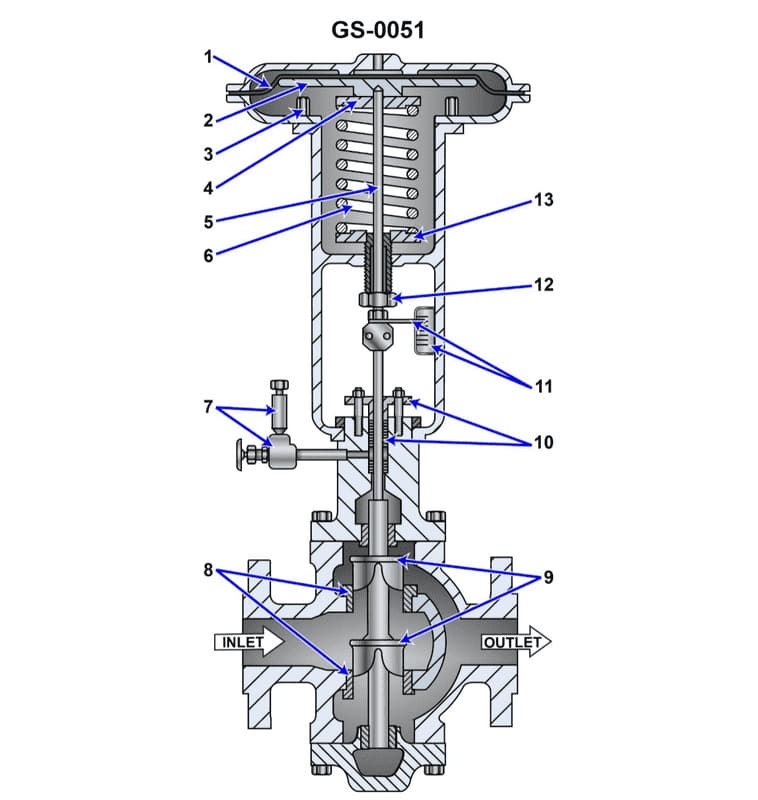

Assuming that the flow is from left to right on the illustrated pneumatically operated diaphragm actuated control valve, what statement is true? Illustration GS-0051
AI Explanation
The correct answer is B) Inlet pressure acts on the lower surface of the top disc and the upper surface of the bottom disc for the purpose of achieving hydraulic balance so that inlet pressure does not influence the valve position.
This is correct because in a pneumatically operated diaphragm actuated control valve, the inlet pressure is designed to act on the opposing surfaces of the top and bottom discs. This creates a hydraulic balance, ensuring that the inlet pressure does not impact the positioning of the valve. The other answer choices do not accurately describe the inlet pressure acting on the disc surfaces to achieve this hydraulic balance.
