Question 274General Subjects - Assistant Engineer70% to pass

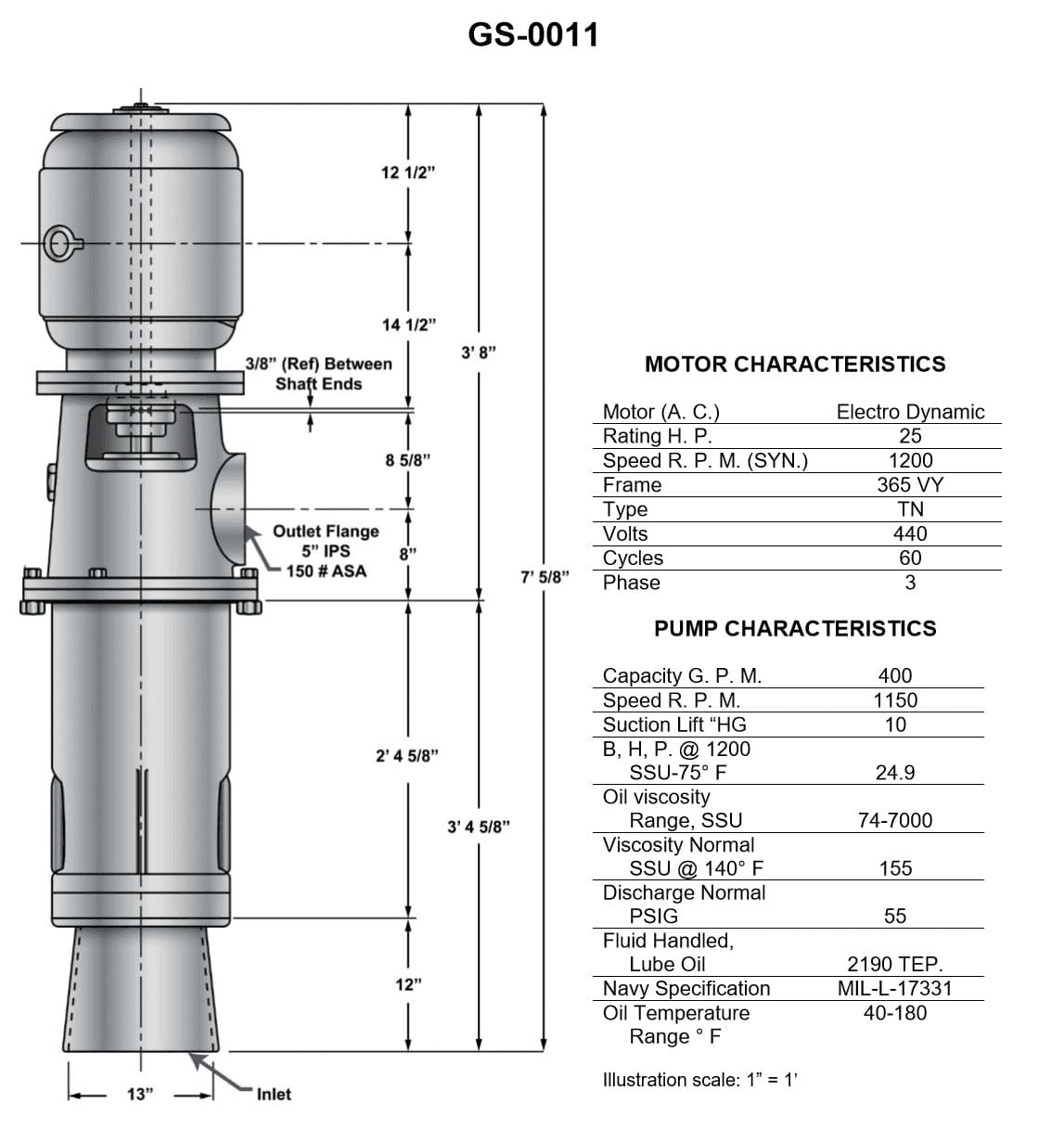

In the pump shown in the illustration, what is the distance from the bottom of the inlet to the bottom end of the motor shaft? Illustration GS-0011
AI Explanation
The correct answer is D) 57 5/8 inches.
The illustration GS-0011 shows the dimensions of the pump, and the distance from the bottom of the inlet to the bottom end of the motor shaft is clearly marked as 57 5/8 inches. This is the only answer choice that matches the dimension provided in the illustration.
The other answer choices are incorrect because they do not match the dimension shown in the illustration. Option A (45 1/4 inches) and Option B (45 5/16 inches) are too short, while Option C (53 5/8 inches) is too long compared to the correct measurement of 57 5/8 inches.
