Question 301General Subjects - Assistant Engineer70% to pass

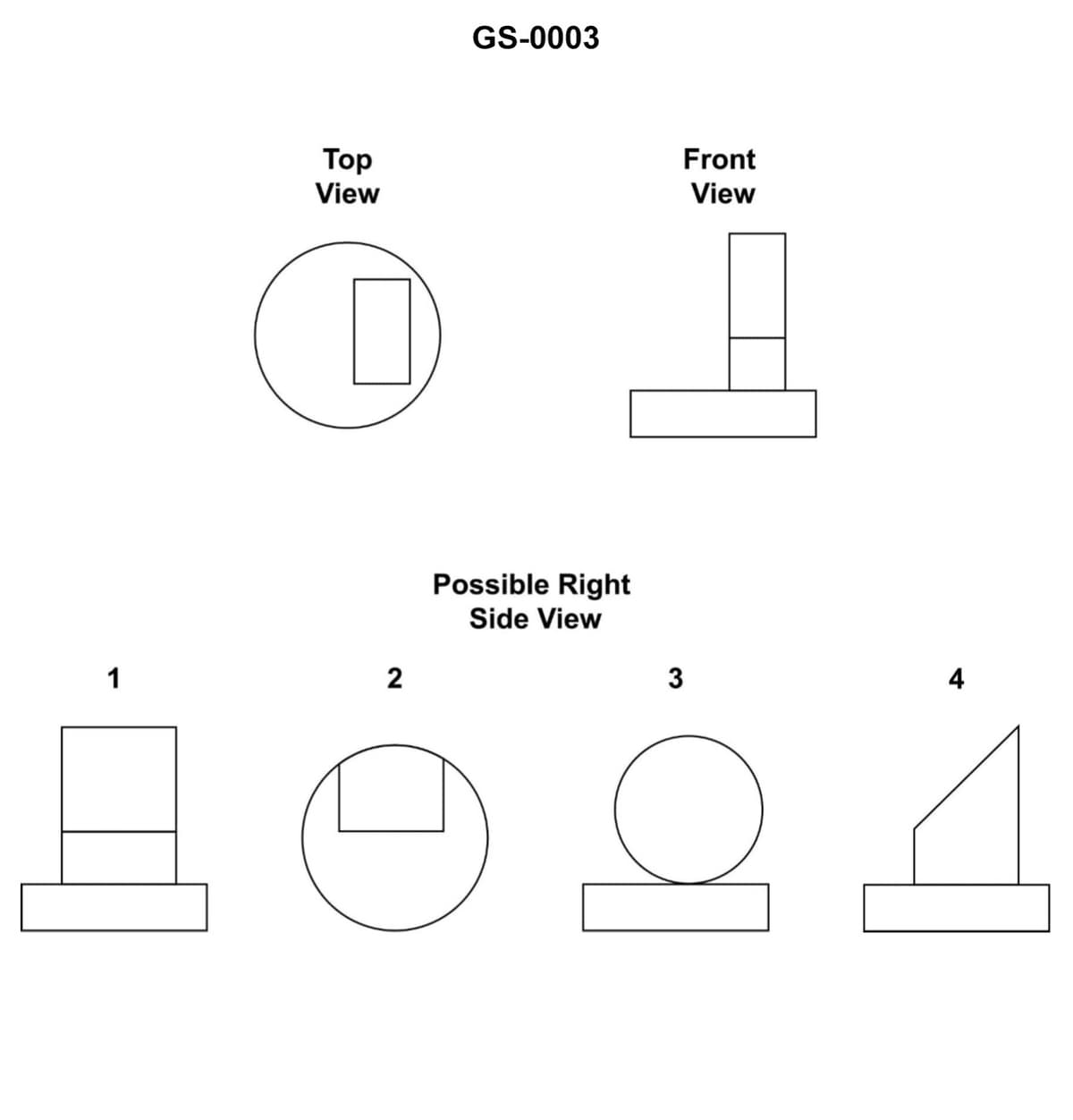

Of the views labeled "1", "2", "3", and "4", select the one that correctly represents the right side view of the unnumbered object in the illustration. Illustration GS-0003
AI Explanation
The correct answer is D.
The illustration shows a side view of an object, and view "4" correctly represents the right side view of that object. This is determined by the principles of engineering drawing and perspective, which are essential knowledge for the US Coast Guard Captain's License Examinations.
The other options, 1, 2, and 3, do not accurately depict the right side view of the object, as they either show a different perspective or do not match the provided illustration.
