Question 321General Subjects - QMED70% to pass

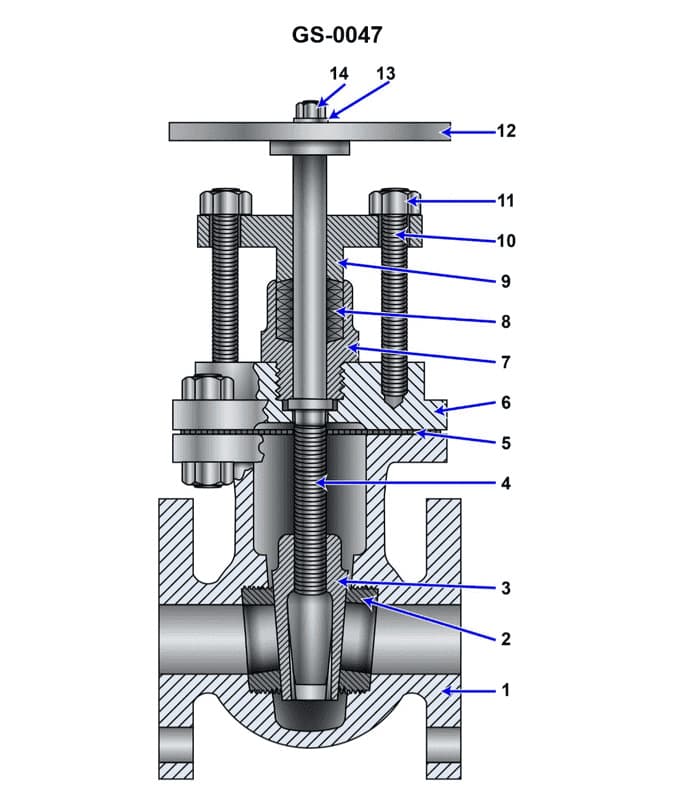

Which of the following statements is true concerning the valve shown in the illustration? Illustration GS-0047

AI Explanation
The correct answer is D) The valve is a non-rising stem design.
The non-rising stem design is a common feature of valves used in marine applications, as it helps prevent the valve stem from becoming stuck or seized in the open or closed position. In this type of valve, the stem does not move up and down as the valve is opened or closed, but instead rotates to open and close the valve. This makes it a more reliable and durable option for use in the marine environment.
The other answer choices are incorrect: A) is false, as most valves require multiple turns of the handwheel to fully open or close; B) is false, as valve seats can typically be replaced or repaired; and C) is not necessarily true, as this type of valve may be used for a variety of flow control applications, not just throttling.
