Question 180Motor Plants - Assistant Engineer70% to pass

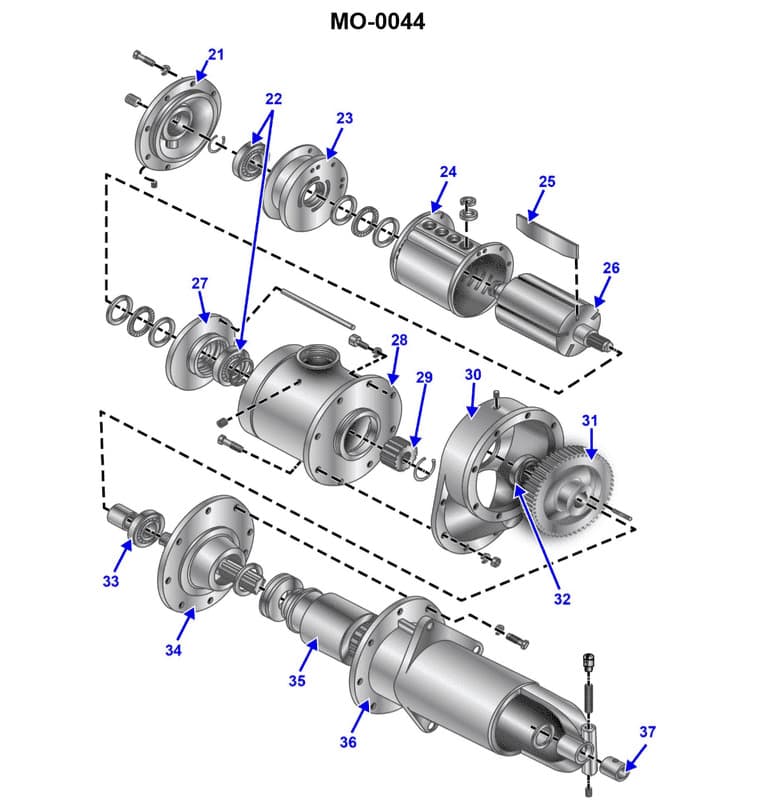

The illustration is of a/an_______________. Illustration MO-0044
AI Explanation
The correct answer is A) air driven starter motor assembly.
This is the correct answer because the illustration, labeled MO-0044, depicts an air-driven starter motor assembly, which is a common component in marine propulsion systems. Air-driven starter motors are used to crank and start diesel engines, providing the initial rotation to get the engine running.
The other answer choices, while describing other types of air-powered or hydraulic components, do not accurately match the specific illustration provided. The key distinguishing feature here is that the illustration depicts a starter motor assembly, which is responsible for initiating engine start-up, rather than a compressor, generator, or hydraulic pump.
