Question 390Motor Plants - Assistant Engineer70% to pass

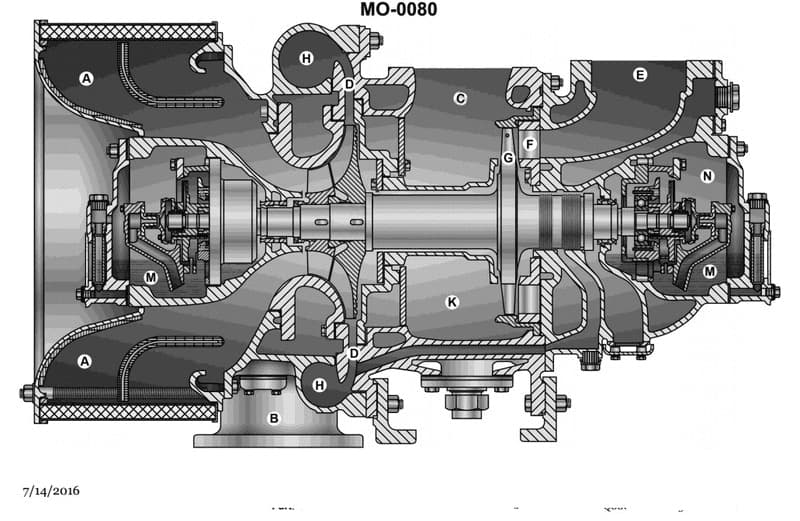

Regarding the turbocharger shown in the illustration, the part labeled "B" would be attached to the_______________. Illustration MO-0080
AI Explanation
The correct answer is D) aftercooler inlet.
The part labeled "B" in the illustration MO-0080 would be attached to the aftercooler inlet. The aftercooler is a critical component of the turbocharger system, as it helps to cool the compressed air coming from the turbocharger before it enters the engine. This cooling process increases the density of the air, which improves the engine's efficiency and power output.
The other answer choices are incorrect because they do not accurately represent the component that part "B" would be connected to. The nozzle ring, silencer outlet, and exhaust manifold are not the correct locations for this particular part within the turbocharger system.
