Question 133Motor Plants - 1st Asst/Chief70% to pass

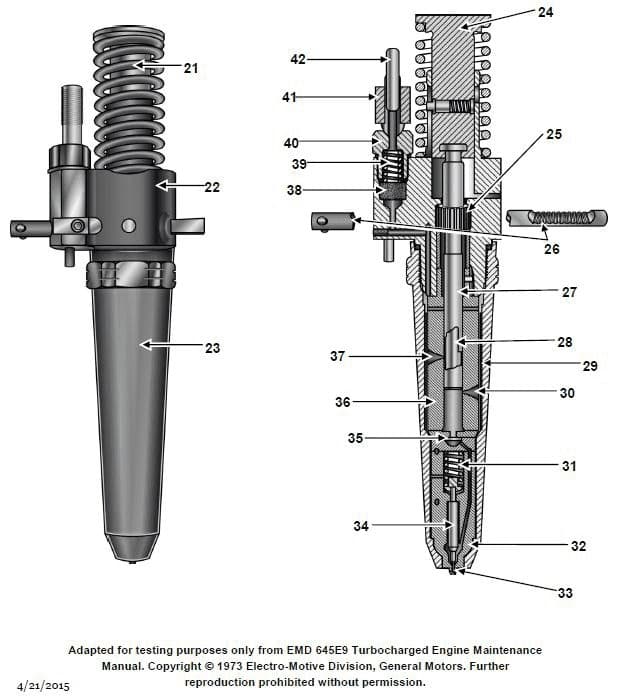

Regarding the fuel injector shown in the illustration, the purpose of piece #38 is to_______________. Illustration MO-0059

AI Explanation
The correct answer is A) filter the fuel.
The purpose of piece #38 in the fuel injector illustration MO-0059 is to filter the fuel. Fuel filters are essential components in fuel injection systems, as they remove contaminants and impurities from the fuel before it enters the injectors. This helps prevent damage to the delicate fuel system components and ensures the engine receives clean fuel for efficient combustion.
The other answer choices are incorrect because piece #38 does not adjust the fuel rack spring tension (B), maintain fuel pressure at a preset level (C), or relieve excess fuel pressure to the suction side of the pump (D). Those functions are typically performed by other components in the fuel injection system.
