Question 17Motor Plants - 1st Asst/Chief70% to pass

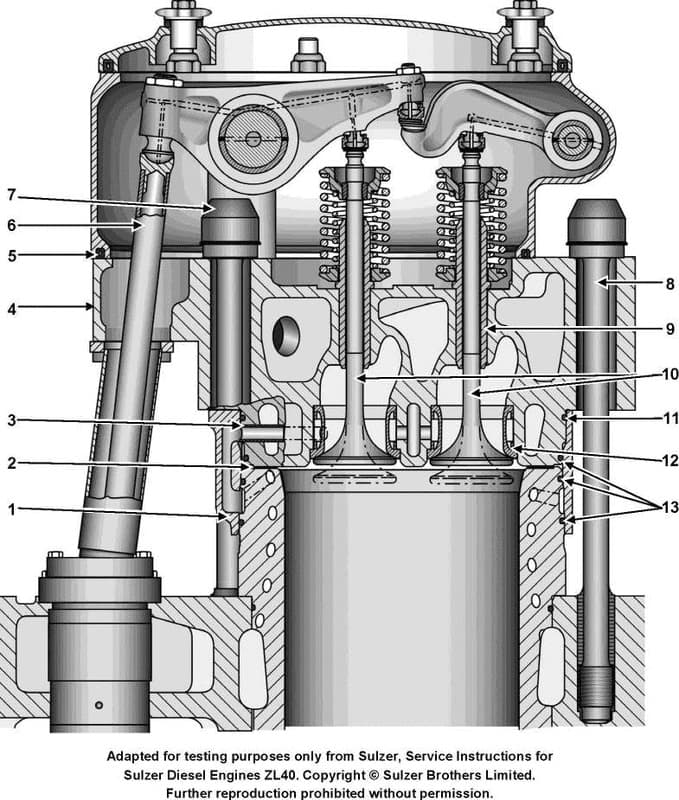

If a valve seat insert, similar to that shown in the illustration is cracked, this may be indicated by_______________. Illustration MO-0043

AI Explanation
The correct answer is A) white vapor in the exhaust gas.
If a valve seat insert is cracked, it can cause combustion gases to leak past the valve, resulting in white vapor or steam in the exhaust. This is because the cracked valve seat allows unburnt fuel and air to escape the cylinder, producing the visible white vapor in the exhaust.
The other options are incorrect because: B) high exhaust pyrometer readings would indicate a problem with that cylinder's thermal efficiency, not necessarily a cracked valve seat; C) continuous spring surge is more likely caused by a mechanical issue like a stuck valve, not a cracked valve seat; and D) a jammed indicator cock is a separate issue not directly related to a cracked valve seat.
