Question 184Motor Plants - 1st Asst/Chief70% to pass

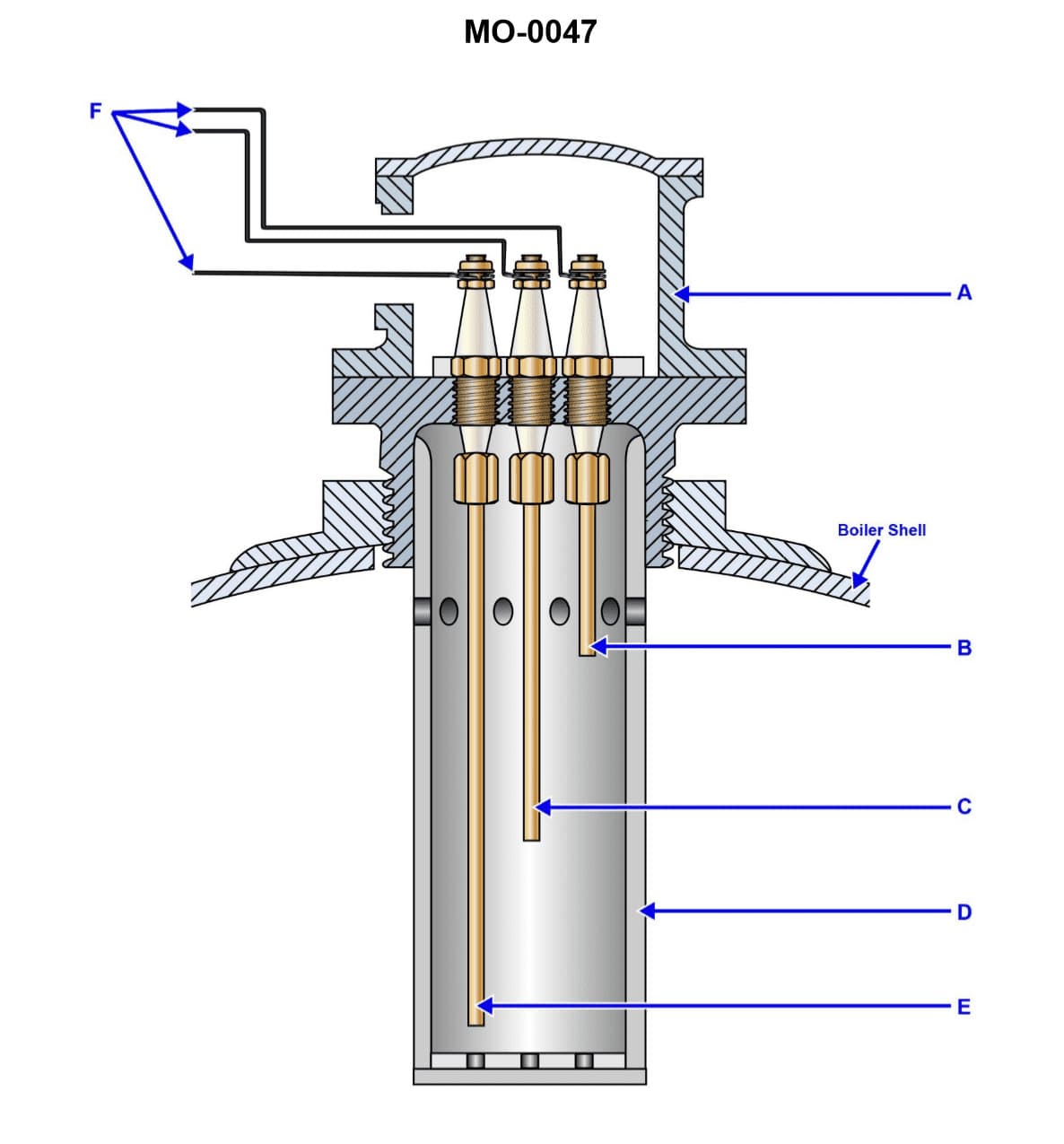

In the water level electrode assembly, shown in the illustration, the feed pump should restart when the level of the water reaches the position indicated by arrow '_____ '. Illustration MO-0047
AI Explanation
The correct answer is C.
The feed pump should restart when the water level reaches the position indicated by arrow C. This is because the water level electrode assembly is designed to control the feed pump operation based on the water level. When the water level drops to the position indicated by arrow C, the electrode will detect this and signal the feed pump to restart in order to refill the tank.
The other options are incorrect because they do not correspond to the position where the feed pump should restart. Option A (E) is too low, option B (B) is too high, and option D (D) is also not the correct position for the feed pump to restart.
