Question 186Motor Plants - QMED70% to pass

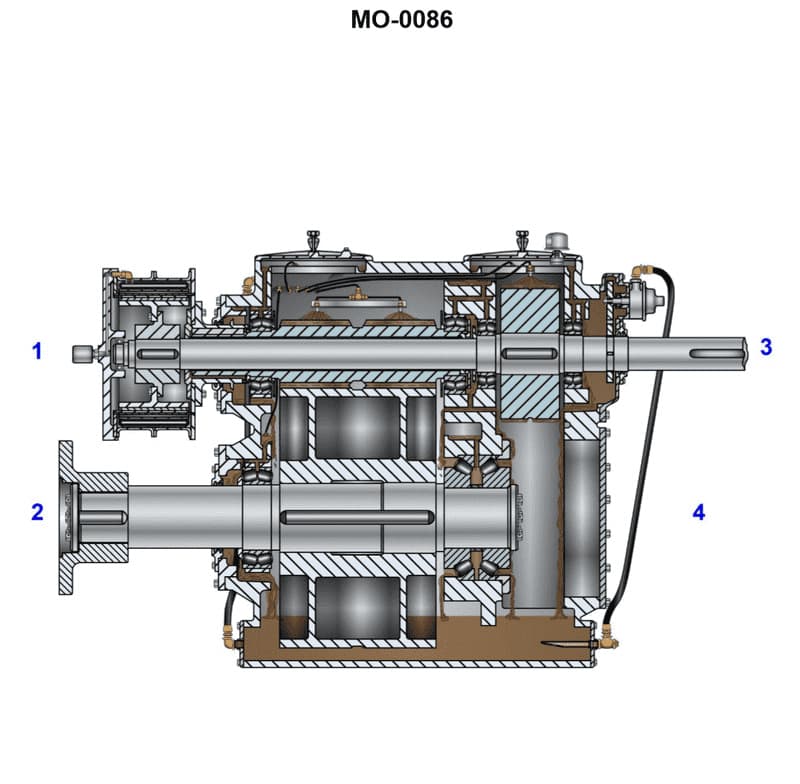

The pinion gear shown in the illustration, is located . Illustration MO-0086
AI Explanation
The correct answer is C) between "1" and "3".
The pinion gear shown in the illustration MO-0086 is located between the numbers "1" and "3", which corresponds to answer choice C.
The other answer choices are incorrect because: A) the pinion gear is not located below the numbers "2" and "4"; B) the pinion gear is not between the numbers "2" and "4"; and D) the pinion gear is not located below the numbers "1" and "3".
