Question 140Safety & Environmental - Assistant Engineer70% to pass

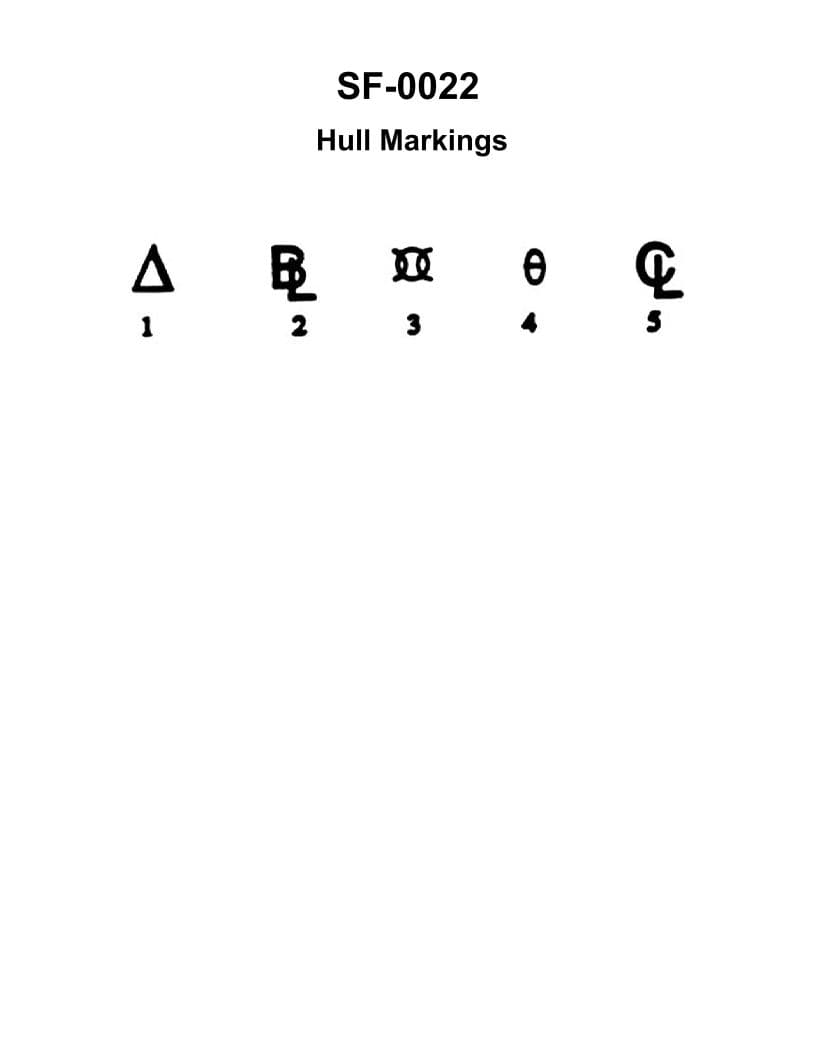

Symbol number "3" shown in the illustration represents which of the following? Illustration SF-0022
AI Explanation
The correct answer is A) amidships.
The illustration SF-0022 is a diagram used for US Coast Guard Captain's License Examinations. In this diagram, symbol number "3" represents the amidships, which is the midpoint of the vessel's length. This is the standard designation for the amidships location on ship diagrams and schematics.
The other answer choices are incorrect because: B) baseline refers to the lowest point of the vessel's hull, C) forward perpendicular is the front of the vessel, and D) displacement is the volume of water a vessel displaces, not a point on the vessel itself.
Related Questions
#138 If the cause of a sudden severe list is due to negative initial stability, counter- flooding into empty ballast tanks may _______________.#139 The symbol shown in the illustration used to represent displacement is _______________. Illustrations SF-0022 #141 The symbol shown in the illustration and is used as the reference from which transverse measurements are made is _______________. Illustration SF-0022 #142 The distance between the bottom of the hull and the waterline is called _______________.#143 After transferring a weight forward on a vessel, the draft at the center of flotation will _______________.
