Question 353Electricity/Electronics - Assistant Engineer70% to pass

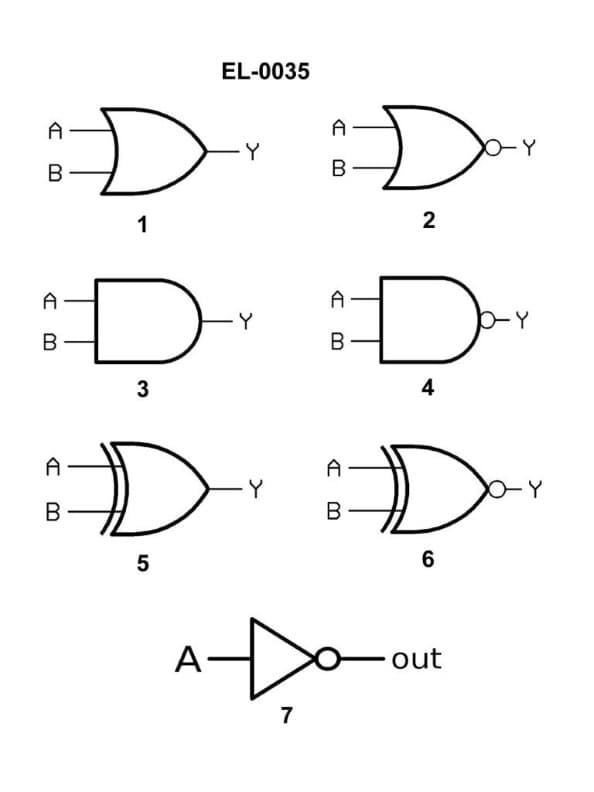

Referring to figure "2" of the illustration, what type of logic gate is symbolized? Illustration EL-0035
AI Explanation
The correct answer is C) NOR gate.
The NOR gate is the logic gate symbolized in figure "2" of the illustration EL-0035. This can be determined by the shape and number of inputs of the symbol, which is consistent with the standard representation of a NOR gate in digital logic diagrams.
The other answer options are incorrect because an OR gate has a different symbol with fewer inputs, an XOR gate has a distinct "exclusive or" symbol, and an AND gate has a different number and arrangement of inputs compared to the provided figure.
