Question 354Electricity/Electronics - Assistant Engineer70% to pass

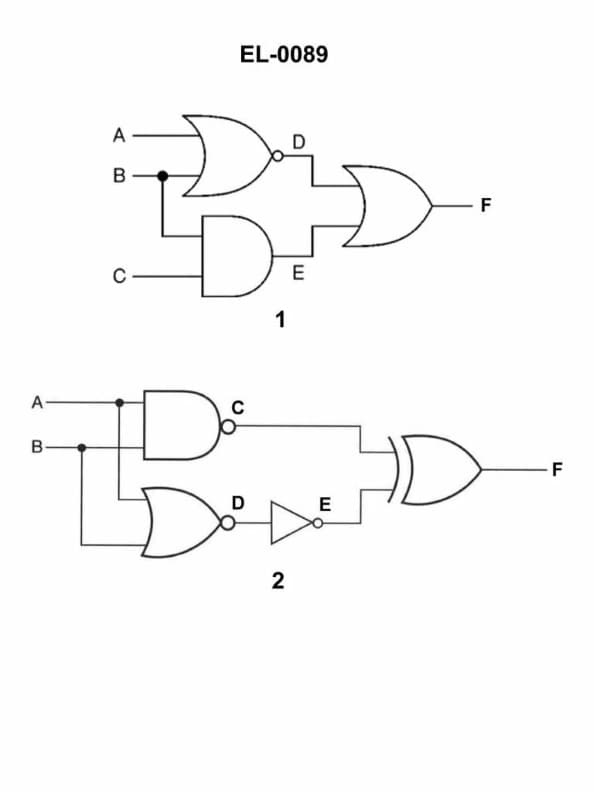

Referring to figure "2" of the illustration, if the inputs at A and B are both "0", what will be the outputs at "C", "D", "E", and "F" respectively? Illustration EL-0089
AI Explanation
The correct answer is D) C = 1 D = 1 E = 0 F = 1.
The reasoning is based on the logic gates illustrated in figure "2". When both inputs A and B are "0", the AND gate will output a "0" at E, while the OR gate will output a "1" at C, D, and F. This logic operation is consistent with the truth table for AND and OR gates, making D the correct answer.
The other options are incorrect because they do not accurately represent the logic gate outputs given the input conditions specified in the question.
