Question 430Electricity/Electronics - Assistant Engineer70% to pass

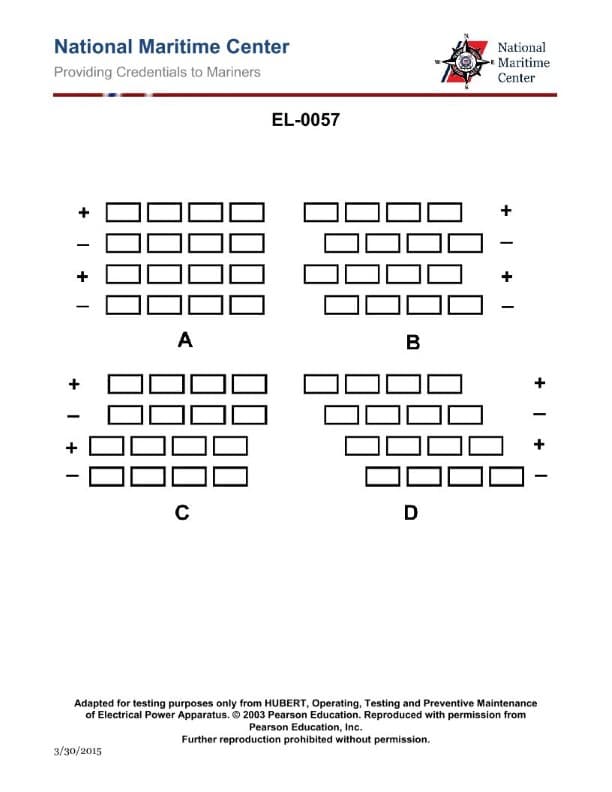

Referring to the illustration of possible brush holder mounting configurations, which figure is the correct method of configuring the brush holders on a DC generator? Illustration EL-0057
AI Explanation
The correct answer is C.
The correct method of configuring the brush holders on a DC generator, as shown in the illustration EL-0057, is configuration C. This configuration ensures that the brush holders are mounted in a symmetrical and balanced manner, which is the proper way to install them on a DC generator. The other configurations shown (A, B, and D) would not be considered correct or recommended for proper brush holder mounting on a DC generator.
