Question 392Electricity/Electronics - QMED70% to pass

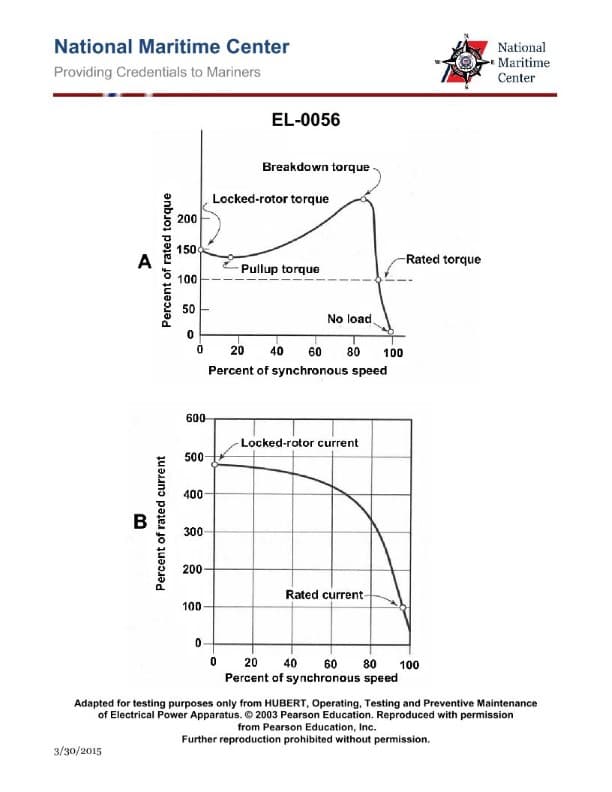

The torque-speed and current-speed curves for a three-phase induction motor with a squirrel cage rotor are shown in figures "A" and "B" of the illustration. Which of the following statements is true concerning the depicted curves? Illustration EL-0056
AI Explanation
The correct answer is B) Starting current is approximately 4.75 times the normal full load current value.
This is correct because induction motors typically have a high starting current, often 4-6 times the full load current, in order to overcome the initial torque requirements during startup. The torque-speed curve in figure "A" shows a very high starting torque, which corresponds to the high starting current depicted in figure "B".
The other answer choices are incorrect:
A) The starting current is typically higher than 1.5 times the full load current.
C) The pull-up point is usually around 50-70% of the full load torque, not 20%.
D) Rated torque and current typically occur at around 2-4% slip, not 20%.
