Question 283General Subjects - Assistant Engineer70% to pass

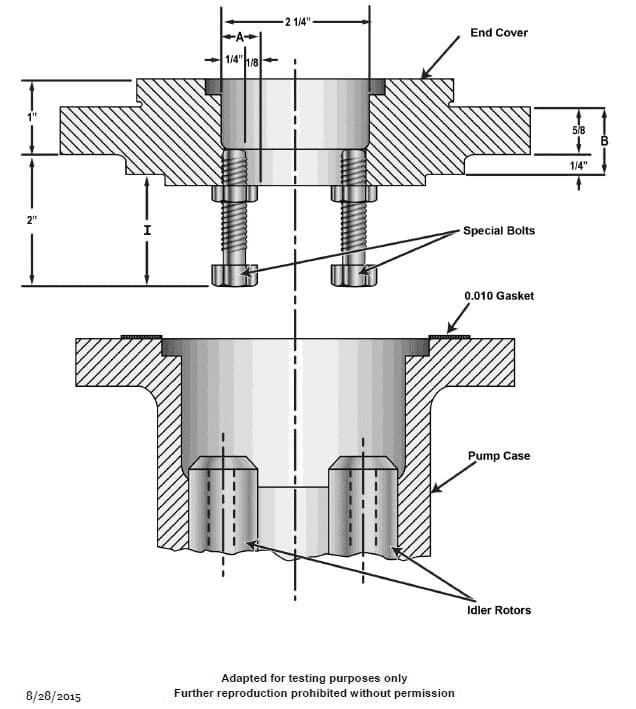

In the illustration shown, what is the distance indicated by dimension "I"? Illustration GS-0001
AI Explanation
The correct answer is B) 1 3/4 inches.
The dimension labeled "I" in the illustration GS-0001 represents the distance between two points, and based on the scale provided in the illustration, this distance is 1 3/4 inches.
The other answer choices are incorrect because they do not match the scale shown in the illustration. Option A (1 1/2 inches) and Option D (2 inches) are too short and too long, respectively, while Option C (1 7/8 inches) is slightly off from the actual measurement of 1 3/4 inches.
