Question 296General Subjects - Assistant Engineer70% to pass

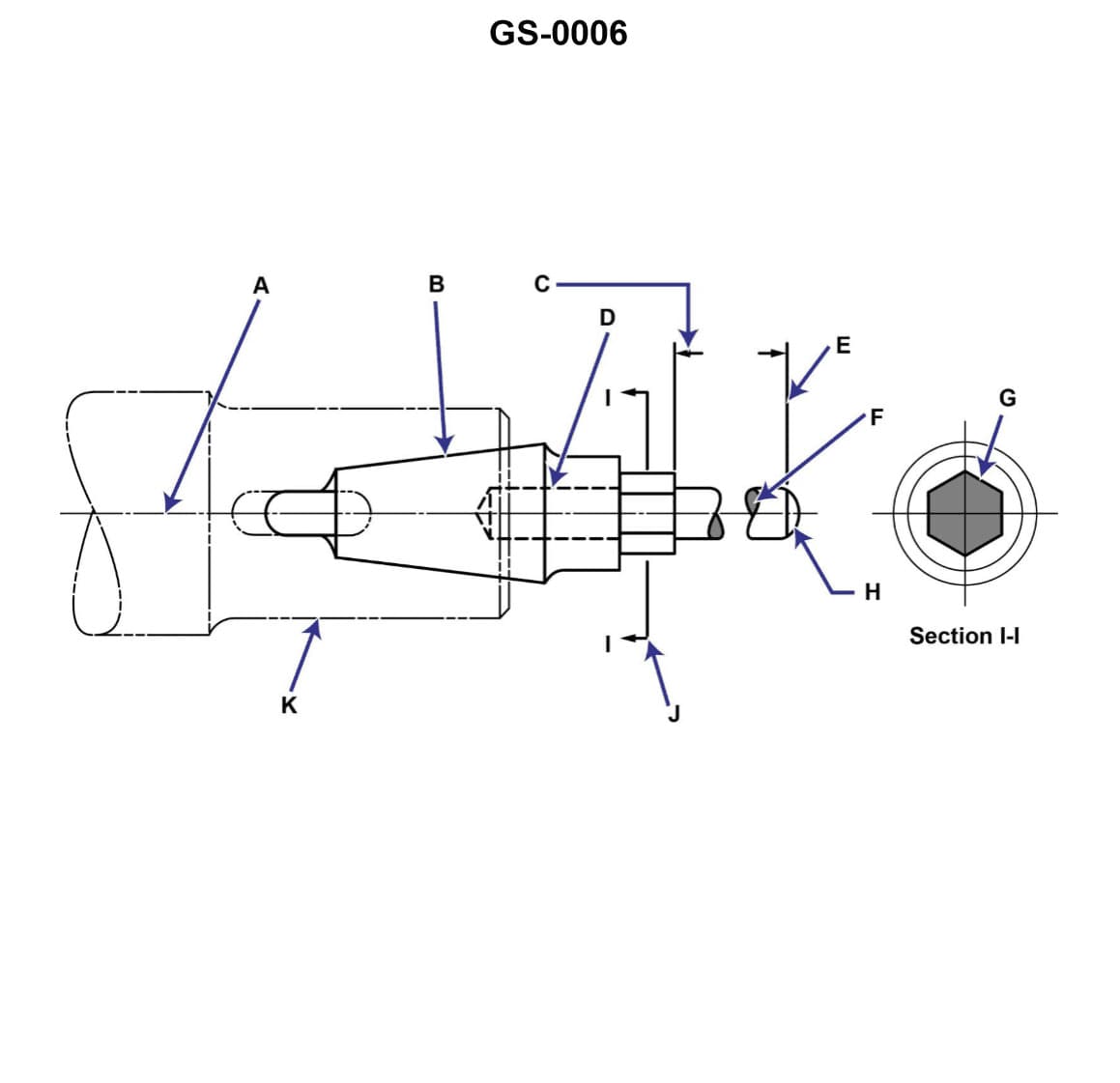

In the illustration, line "C" is a _______________. Illustration GS-0006
AI Explanation
The correct answer is A) dimension line.
A dimension line is used to indicate the size or measurement of an object or feature shown in the illustration. In the given illustration GS-0006, line "C" is a dimension line that specifies the measurement of a particular dimension of the object being depicted.
The other answer choices are incorrect because:
B) Leader line - A leader line is used to point to and identify a specific feature or part of the illustration.
C) Cutting plane line - A cutting plane line indicates the location of a cross-sectional view or cut-away view.
D) Phantom line - A phantom line is used to show the hidden or unseen features of an object.
