Question 298General Subjects - Assistant Engineer70% to pass

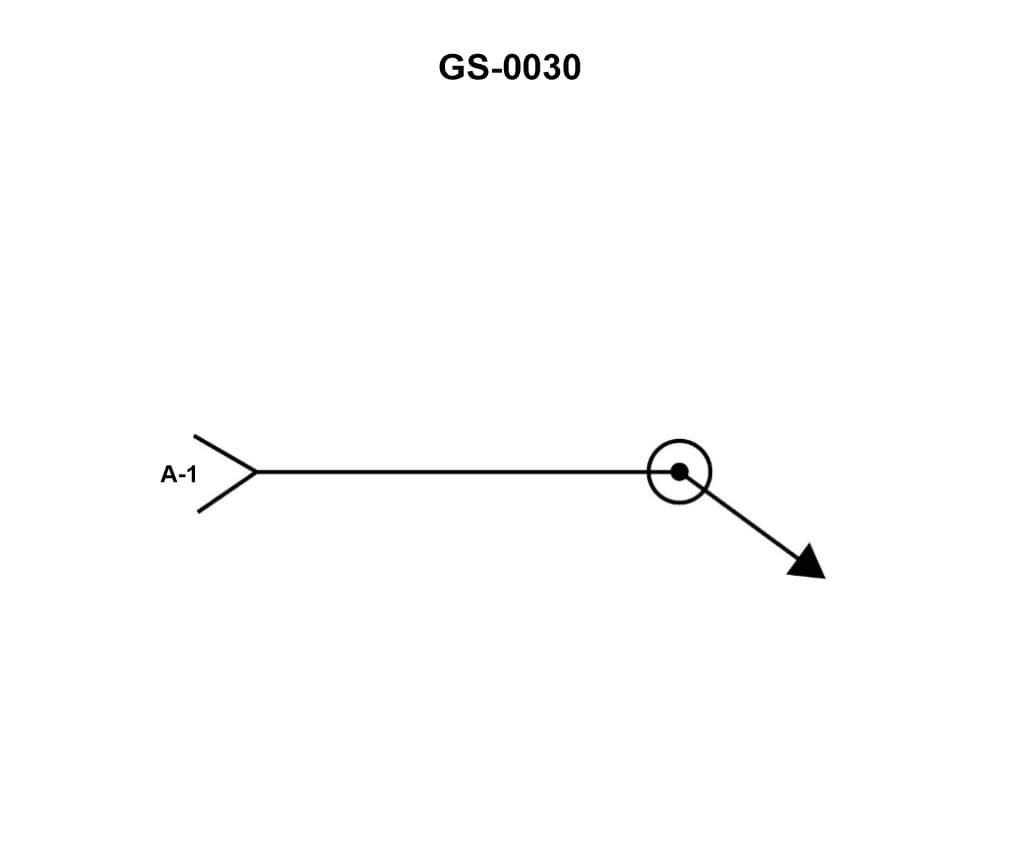

Using the information in the illustration shown, the tail of the welding symbol will . Illustration GS-0030
AI Explanation
The correct answer is B) designate the welding specifications.
The tail of the welding symbol is used to specify the welding standard, process, or other relevant welding details. It does not designate the type of weldment, the size of the weldment, or the direction of welding. The tail provides information about the welding requirements, such as the welding code, procedure, or any special instructions, which is the correct interpretation of the welding symbol based on the information provided in the illustration.
